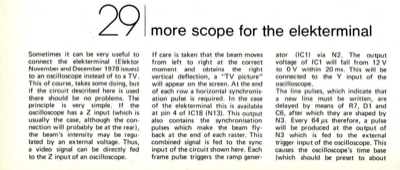

1-07-1980 | Sometimes it can be very useful to connect the elekterminal (Elektor November and December 1978 issues) to an oscilloscope instead of to a T...

1-07-1980 | The loudspeaker protection circuit described elsewhere in this issue can be used to protect multipath loud- speaker systems effectively from...

1-07-1980 | 7-24 elektor july/august 1980 1 31current saving home trainer 12 R2 100n 11 Many sport-loving Elektor readers welcomed the idea of an exerci...

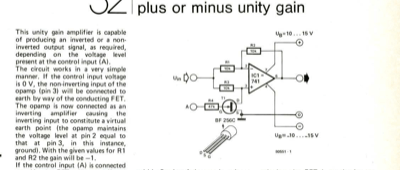

1-07-1980 | 32 This unity gain amplifier is capable of producing an inverted or a non- inverted output signal, as required, depending on the voltage lev...

1-07-1980 | The new Toko piezo buzzer shown in the photo can be used for all kinds of simple acoustic alarm circuits. Its greatest advantage is its extr...

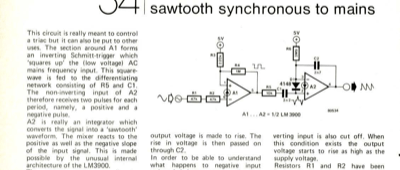

1-07-1980 | 7-26 elektor july/august 1980 This circuit is really meant to control a triac but it can also be put to other uses. The section around Al fo...

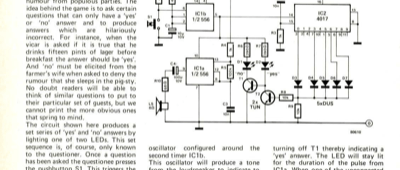

1-07-1980 | Less energetic than musical chairs or charades, the use of this circuit can evoke just as much, if not more, humour from populous parties. T...

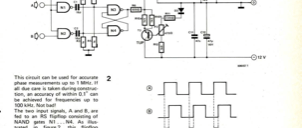

1-07-1980 | 1 36 5V N1i...N4=IC1=74S00 phase meter This circuit can be used for accurate phase measurements up to 1 MHz. If all due care is taken during...

1-07-1980 | 7-28 elektor july/august 1980 37 1 universal warning alarm 3 ... 15 V 5 ... 20 mA v!rs. 0 61 ip Mc T R511 pH i1 used to pulse a second oscil...

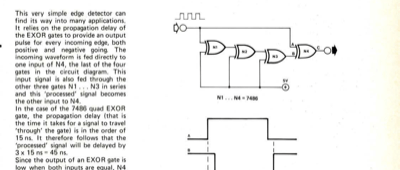

1-07-1980 | 38 This very simple edge detector can find its way into many applications. It relies on the propagation delay of the EXOR gates to provide a...
