MIDI-Channel-Analyzer MKII [140065-I]
![276](https://cdn.xingosoftware.com/elektor/images/fetch/dpr_1,w_200/https%3A%2F%2Fwww.elektormagazine.com%2Fassets%2Fupload%2Fimg%2Fpublic%2Foriginal%2Fmidi-channel-analyzer-mkii-top.jpg)

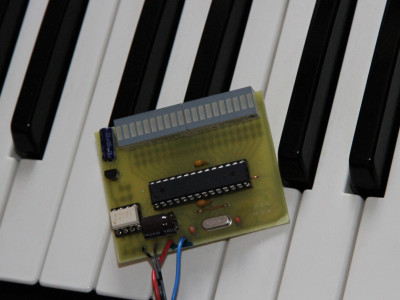

20 Year ago Elektor published my first version of the MIDI-Channel-Analyzer to view the channels of MIDI traffic. This was done with many many logic TTL-ICs. This is a new version with only one Atmel Mega 8 and some other parts. As a tribute to the first analyzer the new analyzer has only LEDs to display the channel and no LC-textdisplay.
20 Year ago Elektor published my first version of the MIDI-Channel-Analyzer to view the channels of MIDI traffic. This was done with many many logic TTL-ICs. This is a new version with only one Atmel Mega 8 and some other parts. As a tribute to the first analyzer the new analyzer has only LEDs to display the channel and no LC-textdisplay.
