MIDI I/O Break-out Board [190070]

Little module that can be configured as a MIDI input or output and with 5-way DIN connector or TRS jack.

Little module that can be configured as a MIDI input or output and with 5-way DIN connector or Tip-Ring-Sleeve (TRS) 3.5mm or 2.5 mm jack. Suitable for use in 5V or 3V3 systems.

MIDI BoB configurations
DIN	TRS35	TRS25
input 3V3/5V	input 3V3/5V	input 3V3/5V
output 3V3	output 3V3	output 3V3
output 5V	output 5V	output 5V

Project Elements

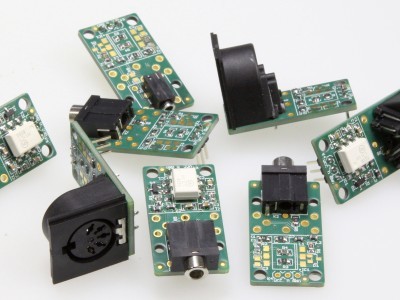

Collection of input and output BoBs with three types of connectors.

190070-21 MIDI BoB stuffing tables.pdf (PDF)

Stuffing tables for all possible MIDI BoB configurations.

190070-22 MIDI BoB as input.pdf (PDF)

MIDI BoB as input - "manual"
