Switched 7805 Replacement THT
![115](https://cdn.xingosoftware.com/elektor/images/fetch/dpr_1,w_200/https%3A%2F%2Fwww.elektormagazine.com%2Fassets%2Fupload%2Fimg%2Fpublic%2Foriginal%2F7805-tht.png)

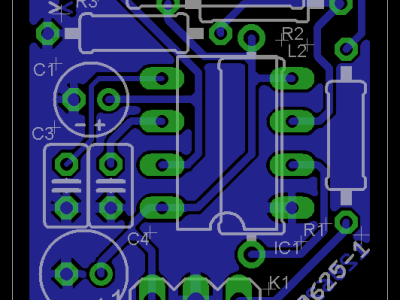

Hello, my Name is Philip and i am doing a internship at the laboratory of Elektor in Limbricht. When i saw Raymond's 7805 project i was excited about it. So i wanted to make it cheaper and started to creating a through-hole version. The project includes 2 one-sided PCB's. One is an adapter from a 16-QFN to an 8-DIL Footprint. The second PCB contains the rest on a size of 22mm x 24mm.
Hello, my Name is Philip and i am doing a internship at the laboratory of Elektor in Limbricht. When i saw Raymond's 7805 project i was excited about it. So i wanted to make it cheaper and started to creating a through-hole version. The project includes 2 one-sided PCB's. One is an adapter from a 16-QFN to an 8-DIL Footprint. The second PCB contains the rest on a size of 22mm x 24mm. Both Inductors will be mounted from the backside of the other components.
