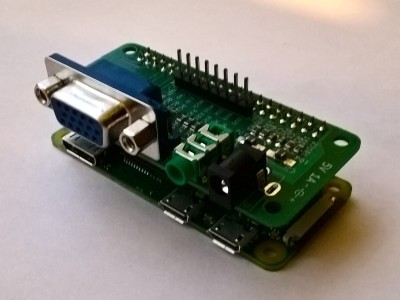

VGA & audio interface for Raspberry Pi Zéro

Status: Proposal
7619
37
votes
January 7, 2019 , Latest update: February 1, 2019
Like VGA666, it use dpi interface (in mode 3  to free gpio 18 & 19)
audio interface is connect to GPIO 18 & 19 (PWM)



Copy vga565.dtbo in /boot/overlays/ and copy content of  config-example.txt  in /boot/config.txt
Read the full post
Show less
Images

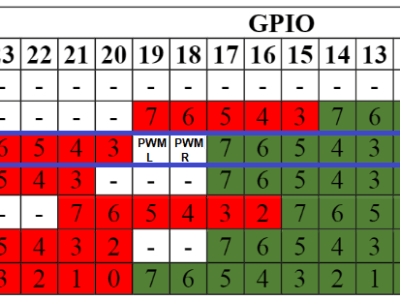

GPIO configuration
v3
Schematics
PCBs
Software
CAD
Other
