Low-Profile Solder Cup Headers
Low-Profile Solder Cup Headers
A space saving solution for wire to board applications

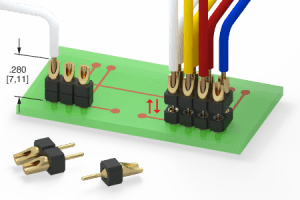

Mill-Max is proud to present a new, low profile solder cup header delivering a 25% reduction in height as compared to our current product.  These solder cup headers are ideal for making wire to board connections where keeping overall height to a minimum is essential.  The new 380-10-1XX-00-002000 (single row) & 480-10-2XX-00-002000 (double row) products feature a standoff height of .185 (4,7 mm), .100 (2,54 mm) pin spacing and .020 (,51 mm) diameter tails suitable for mating with a variety of sockets or terminating directly to a P.C.B.  The insulator material is Nylon 46 with an HDT of 290°C to withstand most soldering processes.  The solder cups are uniformly aligned to facilitate efficient soldering, especially useful for terminating cables, and can accept up to 22 AWG stranded wire.

Click here to stay up to date with all our newest products such as this one.
