Elektor Team (9510)

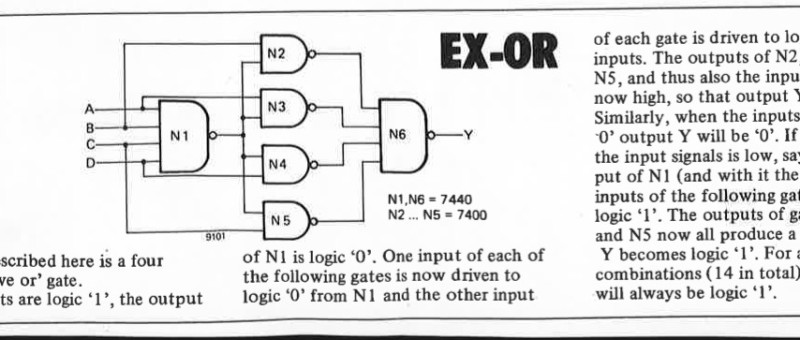

1-07-1975 | The circuit described here is a four input `exclusive or` gate. When all inputs are logic `1 `, the output of Nl is logic `O`.

1-07-1975 | The circuit described here is a four input `exclusive or` gate. When all inputs are logic `1 `, the output of Nl is logic `O`.

1-07-1975 | The circuit described here is a four input `exclusive or` gate. When all inputs are logic `1 `, the output of Nl is logic `O`.

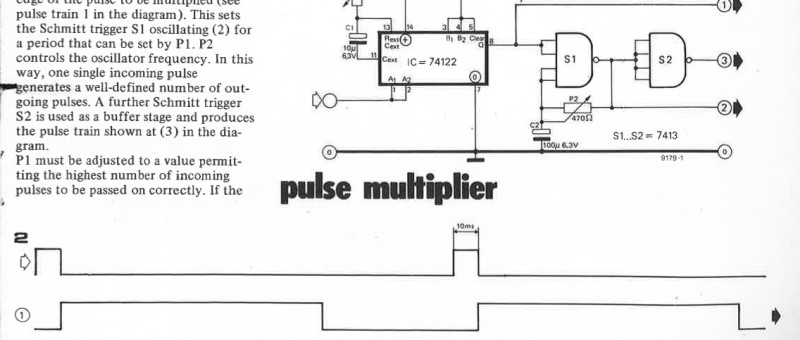

1-07-1975 | This circuit uses a start/stop oscillator and a monostable multivibrator. The monostable is triggered by the trailing edge of the pulse t...

1-07-1975 | This circuit uses a start/stop oscillator and a monostable multivibrator. The monostable is triggered by the trailing edge of the pulse t...

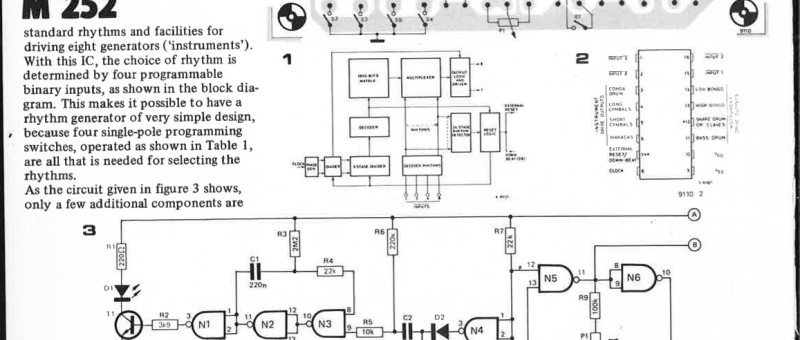

1-07-1975 | Electronics is beginning to establish a firm foothold even in the world of music, as is evident from the introduc- tion by SGS-Ates of tw...

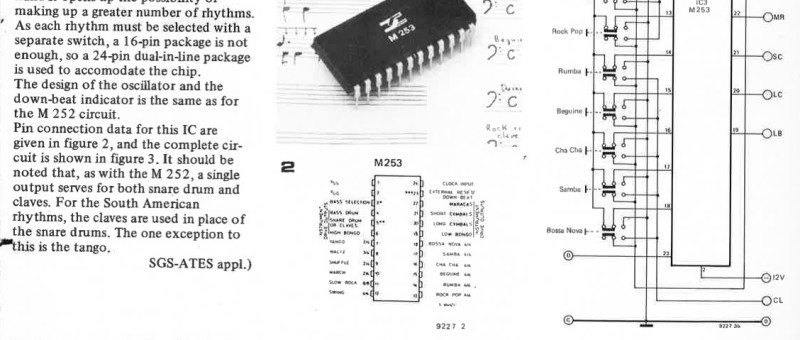

1-07-1975 | The M 253 exhibits a number of basic differences in comparison with the M 252. In the first place the chip is simpler, as the binary prog...

1-07-1975 | Many different methods are followed to generate mains synchronised pulses. This circuit employs an opto-coupler to give complete isolatio...

1-07-1975 | Many different methods are followed to generate mains synchronised pulses. This circuit employs an opto-coupler to give complete isolatio...

1-07-1975 | Many different methods are followed to generate mains synchronised pulses. This circuit employs an opto-coupler to give complete isolatio...
