Sound Activated Switch for Amplifiers

Automatic Switch-On for Amplifiers and Active Speakers

Sound Activated Switch for Amplifiers
Sound Activated Switch for Amplifiers

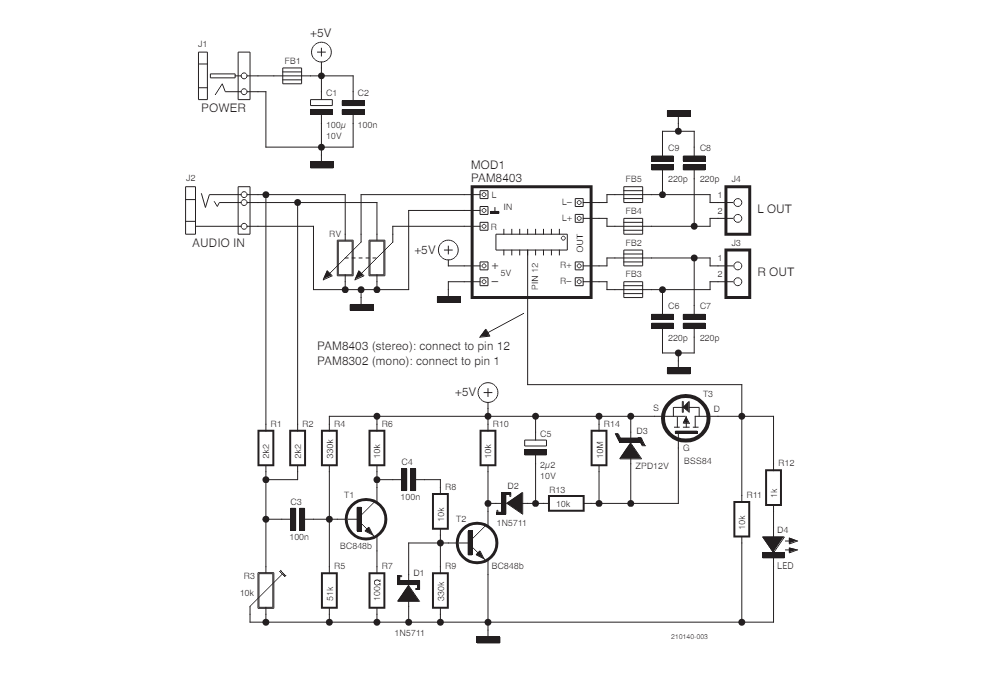

When you have a power amplifier connected after any sort of audio source, you usually need an additional power switch, which makes things inconvenient. It would be better if the amplifier would automatically switch on at the same time as the signal source. This is possible with the small circuit described here, consisting of three transistors, which detects the presence of an audio signal.
Download article


Materials

Want to build a project?

Bring your design to life with the Elektor PCB Service, powered by Eurocircuits. Upload the project files and order professionally manufactured PCBs or assembled boards through a proven European production platform.

Supporting KiCad, Eagle, Gerber, and ODB++ formats, the service is suitable for everything from prototypes and validation builds to series production and volume manufacturing.

Made in Europe. Fast. Reliable. Professional.

Fabricate a PCB

Bill of Materials

Component list

Resistors

(SMD *)

R1,R2 = 2.2 kΩ

R3 = 10 kΩ trimpot

R4,R9 = 330 kΩ

R5 = 51 kΩ (15 kΩ @ 20 V) *

R6,R8,R10,R13 = 10 kΩ

R7 = 100 Ω

R11 = 10 kΩ (39 kΩ @ 20 V) *

R12 = 1 kΩ (6.8 kΩ @ 20 V) *

R14 = 10 MΩ

RV = 100 kΩ potentiometer, stereo, log (optional)



Capacitors

C1 = 100 µF 10 V (100 µF 25 V @ 20 V) *

C2,C3,C4 = 100 nF ceramic or film

C5 = 2.2 µF 10V (470 nF 25 V @ 20 V) *

C6–C9 = 220 pF ceramic



Semiconductors

D1,D2 = 1N5711 (Schottky)

D3 = omitted (12 V Z diode @ 20 V) *

D4 = LED *

T1,T2 = BC848B

T3 = BSS84



Other

Amplifier module with PAM8403 or PAM8302 *

FB1–FB5 = ferrite bead

J1–J4 *



* See text
