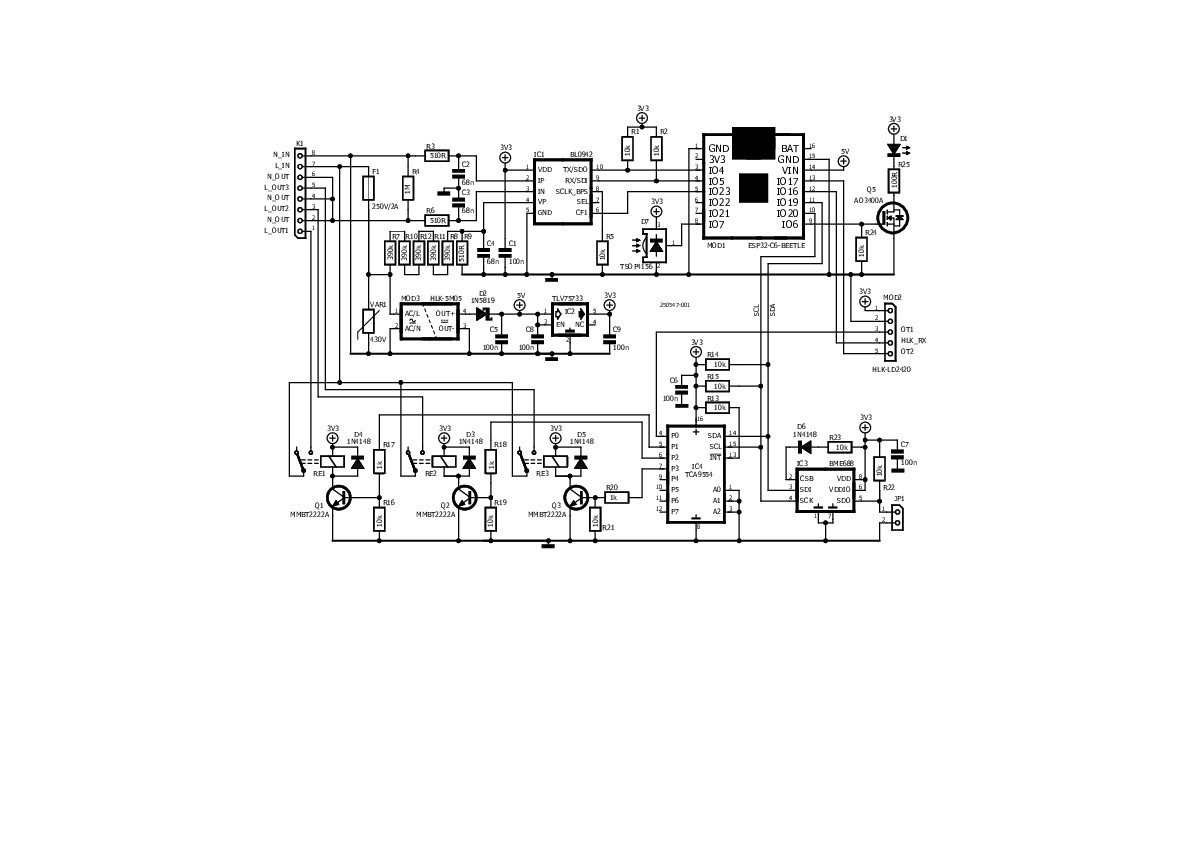

Relio v1.0 - Presence Detection and Remote Control

A Matter-Enabled Smart Controller for AC Appliances

Relio v1.0 - Presence Detection and Remote Control
Relio v1.0 - Presence Detection and Remote Control
Relio is a compact, Matter-enabled smart device that integrates presence detection, environmental sensing, IR control, energy monitoring, and relay switching. Built around the Beetle ESP32-C6 controller module, it provides a universal way to bring intelligence to existing room appliances.
Log in here as a subscriber to read the article.

Continue reading this Elektor article?​

Try a digital membership (Green) for 6 months for only €5.33 per month.​​
  • Unlimited access to online Member Only articles
  • 3 new editions Elektor Magazine (digital)
  • More than 5000 Gerber files
  • 20% member discount on e-books (at elektor.com)
  • 10% member discount on Products (at elektor.com)
Try for 6 months.
Stops Automatically.
What is Elektor Exclusive?


Materials

Component list

Component List

Resistors

R1, R2, R5, R13...R16, R19, R21...R24 = 10 kΩ
R3, R6, R9 = 510 Ω
R4 = 1 MΩ
R7, R8, R10...R12 = 390 kΩ
R17, R18, R20 = 1 kΩ
R25 = 100 Ω



Capacitors

C1, C5 = 100 nF
C2, C3, C4 = 68 nF
C6, C7, C8, C9 = 0.1 µF



Semiconductors

D1 = TSAL4400
D2 = 1N5819HW-7-F
D3, D4, D5, D6 = 1N4148W
D7 = TSOP41xx

Q1, Q2, Q3 = MMBT2222A
Q5 = AO3400A

IC1 = BL0942
IC2 = TLV75733PDBVR
IC3 = BME688
IC4 = TCA9554DBQ



Modules and Connectors

K1 = TB001-500-08BE
MOD1 = Beetle ESP32-C6
MOD2 = HLK-LD2420
MOD3 = HLK-5M05



Relays

RE1, RE2, RE3 = G5LE-14 DC3



Other Components

F1 = 3403.0169.24
RV1 = TND10V-431KB00AAA0
