Long Life (Up To 10,000 Hours at 105°C) And A Wide Temperature Range (-40°C to +105°C)

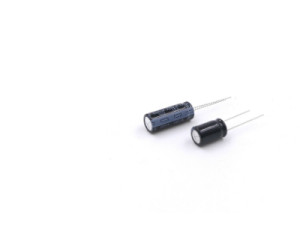

Panasonic Automotive & Industrial Systems Europe has recently introduced a new series of miniature aluminium electrolytic capacitors (radial lead type) for applications such as Unit Power Supply Output, Noise Filtering, DC/DC Converter and Back-Up Power. New FS series capacitors benefit from low ESR values (down to 12mΩ), a small footprint (one size smaller than popular FR series components) and high endurance of 5.000h up to 10.000h at 105°C.

Fully RoHS compliant, FS series capacitors have been designed for a wide operating temperature range of -40°C up to +105°C. The products feature a rated voltage range of 6.3VDC up to 50VDC, a capacitance range of 27μF up to 10000μF, and a capacitance tolerance of ±20% (120 Hz/+20°C). Leakage current is ≤ 0.01CV (μA) after 2 minutes.

Andreas Lapucha, Product Marketing Manager Capacitors at Panasonic comments: “The FS Series provides space reduction and allows for a reduced number of capacitors on the board. Low ESR and high ripple current in the FS Series combine to provide a more stable, long life capacitor alternative. The characteristics of the FS Series promises to be very useful for power instruments, home appliances, set top box, servers and lighting.”

For further information on Panasonic’s FS series capacitors please visit: https://industrial.panasonic.com/cdbs/www-data/pdf/RDF0000/ABA0000C1256.pdf
