Nordic’s Bluetooth solution

July 9, 2015 | 01:25

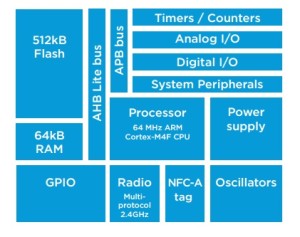

The nRF52832 is a complete SoC
The nRF52832 is a complete SoC
The recently announced nRF52832 from Nordic Semiconductor is a multiprotocol Bluetooth Smart, ANT/ANT+ and 2.4 GHz proprietary SoC offering -96 dB RX sensitivity, 5.5 mA peak RX/TX currents, and an on-chip RF Balun for Ultra Low Power wireless applications. Included on the chip is an ARM Cortex M4F processor with 512 kB flash (400 kB available for application development) and 64 kB RAM memory. The device also has a NFC-A tag interface for out-of-band pairing capability. A fully-automatic power management system enables the device to achieve a figure of 90 CoreMark/mA.

Additional key Features:
• Software stacks available as downloads
• Application dev independent of protocol stack
• Programmable O/P power from +4 dBm to -20 dBm
• RSSI
• 32 GPIOs
• Programmable Peripheral Interface
• Simple ON/OFF global power modes
• SPI/2-wire/UART/PDM/I2S communication
• 12-bit/200KSPS ADC
• 128-bit AES ECB/CCM/AAR co-processor
• Quadrature demodulator
• Supply range 1.7 to 3.6 V with on-board buck converter
• Peripheral power management

The nRF52832 is available in a 48-pin 6 x 6 mm QFN and a 3.0 x 3.2 mm CSP package. Development Kits, QFN samples, software and documentation are available today. Volume production is scheduled for December 2015. For more details visit Nordic Semiconductor.
