OKW expands Unitec enclosure series

December 24, 2015 | 10:41
OKW expands Unitec enclosure series
OKW expands Unitec enclosure series

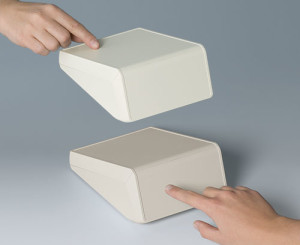

OKW has expanded its Unitec series of dual face sloping front enclosures with twelve new versions in each size. The dual face design of these enclosures makes them ideal for use in data acquisition systems, access and information terminals, data systems, instrumentation and control devices, industrial controllers, diagnostic equipment and therapy applications.

The ergonomic IP40 enclosures are available in desktop and wall-mounted versions. The dual faces are inclined at angles of 72º and 18º. In desktop applications, one user can enter data on the top face and another user can read data from the front face. The smart design of the Unitec series allows components and PCBs to be mounted on the bottom, top and front with integrated screw pillars. Electronics and interfaces can be installed as a complete package because the top and front faces are perpendicular to each other.

The Unitec series is available in two sizes: small (125 x 177 mm) and medium (148 x 210 mm). There are three versions in each size: without a battery compartment; with a battery compartment for three AA cells, and with a battery compartment for five AA cells. Each of the three versions is available in four different variants with an 0.6 mm or 1.4 mm recess for a product label or keypads. All enclosures are made from ABS plastic (UL 94 HB) with off-white (RAL 9002) as the standard color.
