Snickerdoodle for the next level up

October 8, 2015 | 01:26

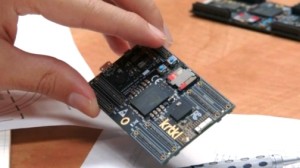

Snickerdoodle packs an Dual-core ARM Cortex-A9 and an FPGA
Snickerdoodle packs an Dual-core ARM Cortex-A9 and an FPGA
Once you’ve built all you can using the Raspberry Pi, BeagleBone and Arduino systems and now you’re looking for a more capable dev board for your next ambitious project, the Snickerdoodle from Krtkl might just fit the bill.

What sets this board apart is its use of a Xilinx Zynq which contains an ARM cortex A9 processor together with an FPGA. FPGAs are notoriously difficult to get to grips with but Snickerdoodle have developed a mobile app which links to the board via its integrated 2.4 GHz Wi-Fi and Bluetooth 4.0 LE communication channels and helps simplify the process of FPGA and I/O configuration.

The system spec:

Processor: Dual-Core ARM Cortex-A9
FPGA: 430 K gates (up to 1.3 M)
RAM: 512 MB (up to 1 GB)
Flash: 16 MB NOR + microSD
Wi-Fi: 2.4 GHz (up to 5 GHz)
Bluetooth 4.0 - Classic & BLE
I/O: FPGA: 100 (up to 125), Processor: 54 x GPIO
microUSB: console, 5V power
Comms: SPI, I2C, CAN, UART, JTAG, Gigabit Ethernet
Power input: 3.7 V to 17 V
Dimensions: 2 x 3.5in (50.8 x 88.9mm)

A number of Snickerdoodle baseboards can also be added to the basic system to provide:

breakyBreaky breakout board - 0.1" headers for snickerdoodle
shieldBuddy - use your Arduino shields with snickerdoodle
piSmasher SBC - HDMI in/out, Gigabit Ethernet, USB, 68 reconfigurable I/O
gryphon autopilot - GPS, CAN, 22x PWMs, 3x IMUs, 2x barometers, safety uC
whiteRhino industrial SBC.

The basic board retails at $55 and the system is up for crowd funding on the Crowdsupply site
