Post project 49:  Small Dynamic Compressor
Post project 49: Small Dynamic Compressor

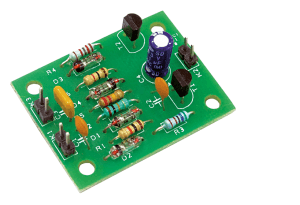

This simple compressor circuit controls the dynamics of a speech signal so that loud sounds are controlled to produce a more intelligible voice signal in noisy environments. This is achieved using a novel control mechanism instead of the more usual feedback loop.

Don't miss any project, take out a free membership to Elektor.POST now!

This circuit uses dynamic feed-forward compression control rather than the more conventional feedback system which regulates the signal using the output signal level. Instead of a control loop this design uses a method of parallel control and despite its relative simplicity it’s surprisingly effective. An input signal with a dynamic of approximately 50 dB produces a constant output signal level ±3 dB.
Attachment
PDF download full
EN201503X001.pdf
