Post Project No. 66: Fast IR Robot Bumper
November 04, 2015
on
on
![Post Project No. 66: Fast IR Robot Bumper](https://cdn.xingosoftware.com/elektor/images/fetch/dpr_1,w_800,h_460,c_fit/https%3A%2F%2Fwww.elektormagazine.com%2Fassets%2Fupload%2Fimages%2F24%2F20151104150541_PostProject66.jpg)

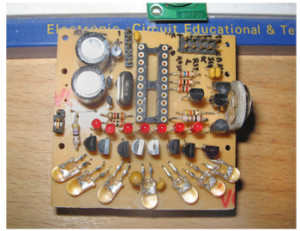

Mobile robots benefit from some form of bumper or obstacle detection system to avoid damage themselves or their surroundings. This design detects obstacles by scanning the area with IR beams.
A semicircular array of IR LEDs driven by a microcontroller sends out a sequence of IR pulses. An IR receiver with a wide receiving aperture detects any reflected IR light from obstacles in the illuminated area. The receiver has a digital output so that it either detects the presence of reflected light or not. The microcontroller knows from tim¬ing information which of the IR diodes sent out the detected light pulse and therefore in which direction the obstacle is.
We can build a special interface to the scanner hardware but why not use one that’s already available?
Don't miss any project, take out a free membership to Elektor.POST now!
Read more? Download the full article for free as a PDF file in the 'Attachment' section below. Lots of fun with this project!
A semicircular array of IR LEDs driven by a microcontroller sends out a sequence of IR pulses. An IR receiver with a wide receiving aperture detects any reflected IR light from obstacles in the illuminated area. The receiver has a digital output so that it either detects the presence of reflected light or not. The microcontroller knows from tim¬ing information which of the IR diodes sent out the detected light pulse and therefore in which direction the obstacle is.
We can build a special interface to the scanner hardware but why not use one that’s already available?
Don't miss any project, take out a free membership to Elektor.POST now!
Read more? Download the full article for free as a PDF file in the 'Attachment' section below. Lots of fun with this project!
