Post project 35: Capacitive Proximity Detector

June 13, 2014 | 10:58
Post project 35: Capacitive Proximity Detector
Post project 35: Capacitive Proximity Detector

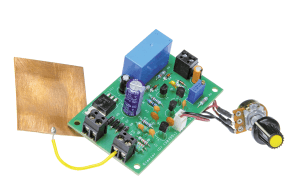

With this circuit you can detect the presence of an object from some distance away, depending on the sensitivity and the size of the object. Very handy for detecting whether someone is on the other side of a door without first having to open the door!

Don't miss any project, take out a free membership to Elektor.POST now!

You can, for example, use this circuit to detect people, but you can also use it to detect the presence or absence of the car in the garage. It doesn’t matter whether the detected objects moves or not, it only matters whether an object is within a certain distance of the sensor.
Attachment
PDF download full
EN201406X003_project 35.pdf
