Cheap ESD simulator
October 1, 2019

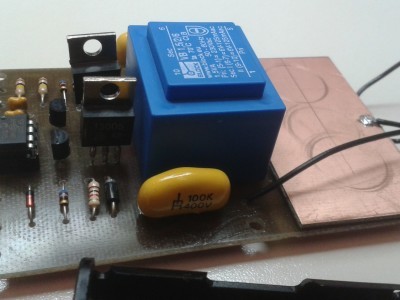

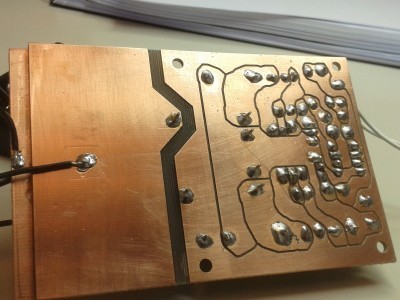

This circuit was designed to check the roboustnest of other circuits against electrostatic discharges (EDS). It provides a repetitive train of high voltage pulses that can be applied to the circuit under test. In addition it is built with components easy to find around in the lab, like a small power transformer and switching transistors salvaged from a broken compact fluorescent lamp. Also a high voltage capacitor was built out of a piece of PCB board.
Read the full post
- ESD simulator Description (3.85 MB )Notes about the design
- Microcontroller Source Code (764 B )Microcontroller Source Code
