OBD Shield for Arduino
![1241](https://cdn.xingosoftware.com/elektor/images/fetch/dpr_1,w_200/https%3A%2F%2Fwww.elektormagazine.com%2Fassets%2Fupload%2Fimg%2Fpublic%2Foriginal%2Fobd-shield.png)

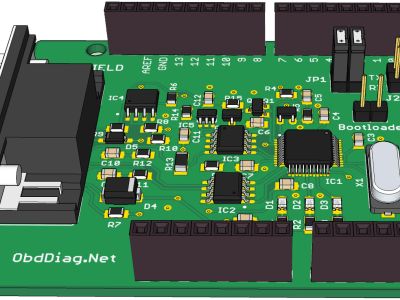

The Arduino OBD Shield connects Arduino board to OBD-II compliant car or light truck..
The Arduino OBD Shield is an OBD to UART interpreter hiding all the complexity of OBD protocol and exposing it as a simple request/reply interface with the help of ArdObd library. The shield schematic is shown here. See the full project page on ObdDiag.Net site.
