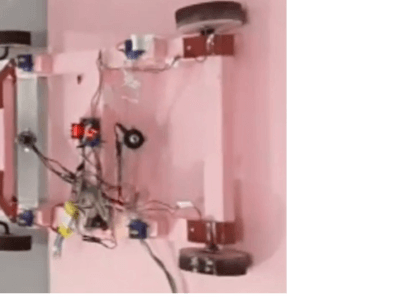

Wall Climbing Robot using arduino nano

Status: Proposal
141
1
votes
June 10, 2019 , Latest update: June 10, 2019
in this robot we use arduino nanao because its size and weight is very less   In this project we have a tendency to discuss regarding wall ascent golem which will hop on walls, walk ceilings
and additionally locomote the surface of earth. 1st of all we discover a
lightweight weight thermo pore sheet to form a structure of wall ascent golem. we have a tendency to
 used Brushless DC Motor during this golem as a result of brushless DC motor has high speed and most revolutions per minute.
exploitation High speed DC brushless motor we have a tendency to create high thrust in vacuum space on down aspect to movement
and ascent on wall. we have a tendency to additionally use mini servo SG90 to regulate angle of suction cups in keeping with our
demand and motor thrust of DC brushless. A wall ascent golem could be a distinctive plan in AI. we have a tendency to additionally
 embrace several options in wall ascent golem in future.





Equipment Required:

Arduino nano

l298 motor driver
led light
7805  voltage regulator
 Brushless Motor
 Paper Cutter

12 voltage relay
Motor Propeller

 ESC Speed controller


 Servo motor SG90

 Mini DC Gear Motor

 small IR Sensor

 Thermo pore Sheet

 lipo battery

 MOTOR Wheel

https://youtu.be/q0-WBWy03o4
