Power electronics is at the heart of modern embedded systems. From efficient power supplies in IoT devices to drive control systems in the automotive industry, reliable measurement methods are essential. Siglent's latest test instruments provide powerful, precise, and cost-effective solutions, which will be showcased live at Embedded World 2025.

High-Precision Power Electronics Measurements with Siglent

Requirements and Challenges of Modern Power Electronics

Modern power electronics must meet high standards. Developers face the challenge of designing increasingly efficient, compact, and powerful systems while complying with strict regulations and environmental requirements. Key factors include low energy losses, high switching frequencies, minimal DC ripple, and thermal stability. Additionally, advancing technology requires precise test methods to detect and eliminate unwanted oscillations and the resulting EMC issues early in development. Active components such as microcontrollers and FPGAs require very dynamic power supplies with high power integrity. Therefore, high-precision measurement technology is essential to ensure system quality and reliability while keeping development times under control.

Analyzing Power Supply Disturbances

Accurate ripple and noise measurements on power supplies are critical to ensuring the quality and stability of electronic systems. Siglent offers the SAP4000P Power Rail Probe, which, in combination with 12-bit oscilloscopes, provides an optimal solution for demanding ripple measurements. With a DC offset of ±24 V and a bandwidth of 4 GHz, this solution enables the detection of even the smallest high-frequency disturbances on the power supply rail. This allows developers to identify critical influences and take corrective measures to improve power delivery.

Double-Pulse Test: The Challenge of Power Measurement

A key test method in power electronics is the double-pulse test, which enables the detailed characterization of switching losses in power semiconductors. It is essential for optimizing efficiency and thermal management. High-resolution signal acquisition, low measurement uncertainty, and an efficient test setup are crucial for success.

The Siglent Solution: Precision and Efficiency Combined

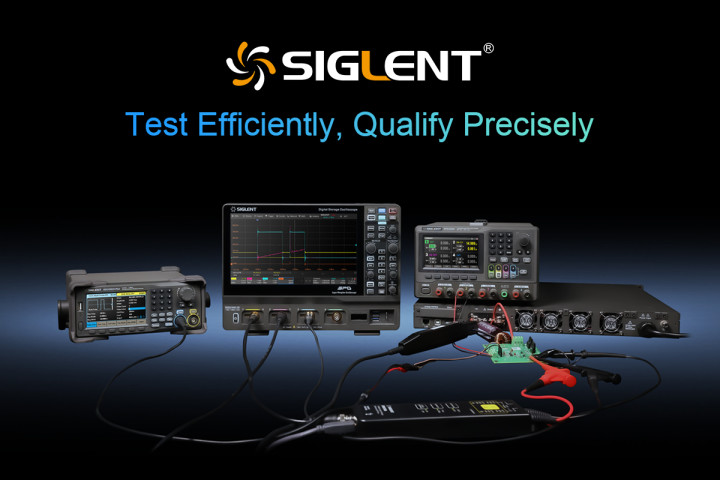

With existing Siglent instruments, a complete measurement system for power testing can be set up. At the core is one of Siglent’s high-resolution 12-bit oscilloscopes, which captures even the smallest signal variations with high precision. When combined with an SDG1000X Plus series signal generator and the powerful SPS6000X power supply, this setup provides an ideal test platform for developers and engineers.

Key Components of the Measurement Solution:

  • SDG1000X Plus Arbitrary/Function Generator: Generates the double-pulse signal for MOSFET gate control.
  • SPS6000X Power Supply: Provides stable system voltage with fast regulation.
  • High-voltage differential probes and current clamps: Ensure safe and accurate signal acquisition.
  • 12-bit oscilloscope: Captures and analyzes test results with superior resolution.

Experience it Live at Embedded World 2025

Embedded World 2025 is the perfect opportunity to see Siglent’s double-pulse test setup and Power Rail Probe in action. Visitors can experience firsthand the performance, measurement accuracy, and ease of use of the instruments.

Efficient power measurements are the key to optimizing embedded systems. Siglent provides developers with powerful solutions to streamline design optimization and ensure reliable qualification.

Visit us at Embedded World 2025, Booth 4-347, and connect with our application specialists!
