Zero Profile Receptacles Keep Components Flush
Zero Profile Receptacles Keep Components Flush
A submission from Mill-Max about Solderless press-fit receptacles for flush mounting in PCBs

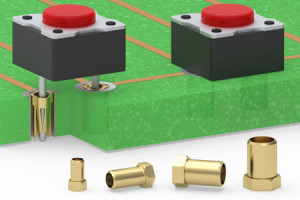

The ongoing pursuit to reduce product and/or package size presents challenges for making connections between PCBs and devices.  With zero profile receptacles, Mill-Max has eliminated any above board connector protrusion, enabling overall package height to be reduced. These receptacles have a precision machined, hexagon shaped flange which is pressed into the PCB Plated Through-Hole (PTH) until flush with the surface of the board.  No soldering is required as the press-fit forms a gas-tight connection with a properly specified plated through hole.  After installation, the zero profile PCB contacts enable a broad range of devices to be plugged in while minimizing overall interconnect height.  They may be used on both traditional and rigid backed flex PCB’s. Click here to stay up to date with all our newest product such as this one.
