mangOH(TM) Red

Status: Proposal
1482
3
votes
July 26, 2016

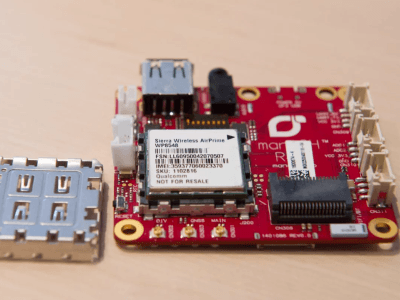

mangOH Red is a revolutionary open hardware platform that will enable the most power-efficient designs yet. Using this platform and Sierra Wireless’s CF3™ module, you can achieve 10 years of battery life. It’s built with the capabilities that the industrial maker community needs: It’s the size of a credit card—one quarter the size of mangOH Green (56mmx65mm) It has one CF3 socket that can take LTE-M1, 2G, 3G, 4G using WP/HL modules Built-in Sierra Wireless SIM, so you don’t have to go look for one We also provide you a SIM slot that can be used with any commercially available SIM Built-in Wi-Fi with b/g/n capabilities, and support for both STA/AP capabilities, so you can use it as a hotspot or as a client Bluetooth 4.0 support. It has standard Bluetooth Standard and BLE capabilities. A Cortex M4 to provide real-time access to I/O, which will be open to the community for programming One IoT Expansion Card slot based on the IoT Connector open standard, so any application that works on mangOH Green will work on mangOH Red Grove Connectors from Seeed studio to connect to multiple sensors Audio codec Battery connector Built-in Accelerometer/Gyroscope.  See more at: https://www.sierrawireless.com/iot-blog/iot-blog/2016/06/introducing-mangoh-red-open-source-hardware-platform-for-connected-industrial-iot/#sthash.oaedfqYx.dpuf
