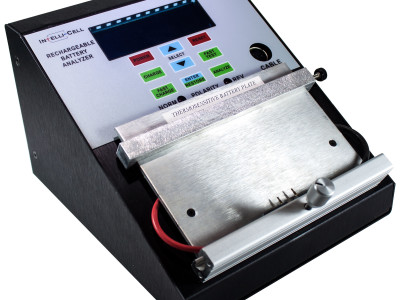

Here is a very smart and reprogrammable rechargeable battery analyzing instrument with a special mounting system to access the terminals of any cell phone battery (including Apple), as well as any other type of battery of any composition or voltage from 1.25 V to 12 V.
It has automatic polarity sensing, heat sensing both on the mounting plate and on the external cable accessory. It can be programmed easily for any composition (NiCd, NiMH, Li-Ion, Li-Fe, Lead Acid) and any amp-hour rating from 400 mA to 5000 mA.
All entries are on a membrane keyboard with readouts on a 2x20 character illuminated display. It includes all safety parameters and will not harm any battery if set correctly.
The mounting plate includes fully adjustable pogo contacts with slides and elevator to access any battery contacts, no matter how difficult. The external cable has alligator clips and a sensing thermistor to reach larger batteries or for using the Apple adapter.
It runs on universal worlwide voltages.
Analyzing after charging allows precise mAHr ratings of the battery as well as a quick test that gives percentage quality of the battery in comparison with its labeled ratings.
Designed by Dave Miga of EDS, Inc, Florida, USA.
- Labs project
The Intelli-Cell Intelligent Rechargeable Battery Analyzer/Charger
August 2, 2016
