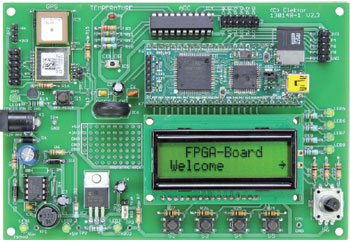

Multi I/O for FPGA Development Board (1)

Add a display, sensors, GPS, pushbuttons, LEDs and more

Multi I/O for FPGA Development Board (1)
Back in December 2012 in an article titled ‘Taming the Beast’ we introduced you to our FPGA development board. The board offers speed and convenience to the task of integrating a programmable logic chip into a project design. It already has a host of interconnect possibilities but, till now, no integrated peripherals. Enter the expansion board….
Downloading of this magazine article is reserved for registered users only.
Login | Register now!
Relevant websites
Gerber file

CAM/CAD data for the PCB referred to in this article is available as a Gerber file. Elektor GREEN and GOLD members can exclusively download these files for free as part of their membership. Gerber files allow a PCB to be produced on an appropriate device available locally, or through an online PCB manufacturing service.

Elektor recommends its business partner Eurocircuits as the company of choice for its own prototypes and volume production in selected cases.

Download the BOM list
The BOM (Bill of Materials) is the technically exhaustive listing of parts and other hardware items used to produce the working and tested prototype of any Elektor Labs project. The BOM file contains deeper information than the Component List published for the same project in Elektor Magazine. If required the BOM gets updated directly by our lab engineers. As a reader, you can download the list here.
Want to learn more about our BOM list? Read the BOM list article for extra information.
Component list
(.25W except R6,R7)
R1,R16 = 1kOhm
R2 = 390Ohm
R3,R14,R17-R20 = 180Ohm
R4 = 0Ohm*
R5,R28 = not fitted *
R6,R7 = 1Ohm 0.5 W
R8 = NTC 22kOhm, type ND03P00223J
R9 = 22kOhm
R10 = 820kOhm
R11 = 510kOhm
R12 = 390kOhm
R13,R15,R21-R27 = 10kOhm
C1 = 330µF 16 V
C2,C7 = 10nF ceramic
C3 = 68µF 16V
C4 = 10µ 10V
C5 = 1µF 16V electrolytic
C6 = 470pF 50V ceramic
L1 = 33µH 1.4 A
LED1-LED8 = LED, green, 3mm
D1,D2,D3 = 1N5817 (Schottky)
T1 = BC547
IC1 = LM2672N-5.0, switch-mode regulator
IC2 = MCP1825S-33EAB, low-drop regulator
IC3 = A2035-H, GPS Module (Newark / Farnell # 2281693)
IC5 = KPS-5130PD7C, color sensor
IC6 = MPX4115A, pressure sensor
JP1,JP2 = 3-pin pinheader, 0.1’’ pitch
JP3 = 2-pin pinheader, 0.1’’ pitch
K1 = adapter socket with center pin
K2,K3 = 12-pin (2x6) pinheader, 0.1’’ pitch
K4 = 16-pin pinheader, 0.1’’ pitch
K5 = 10-pin (2x5) pinheader, 0.1’’ pitch
K6,K7 = 25-way SIL receptacle for FPGA Board
LCD = 2x16 characters, HD44780-compatible (Newark /Farnell # 1847939)
S1-S5 = pushbutton, 6x6 mm
S6 = EC12E rotary encoder, 24 P/U, with pushbutton
8-pin IC socket for IC1 (optional)
20-pin IC socket for IC4 (optional)
16-way SIL receptacle for LCD, 0.1’’ pitch
PCB #130148-1 rev2.3
