HangTux

Hangman game on the Elektor Embedded Linux board

HangTux

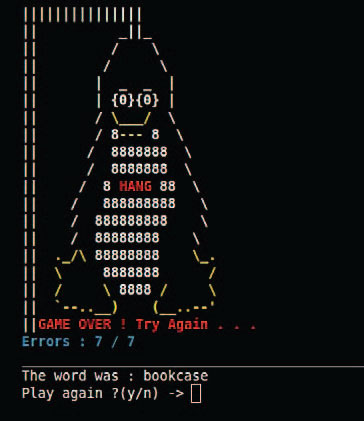

Here’s a concrete little application for the Elektor Linux board, to show that the little penguin’s not as fearsome as you might have thought.
Downloading of this magazine article is reserved for Elektor Members only.
Already a member? click here to log in.
Products
Relevant websites
Gerber file

CAM/CAD data for the PCB referred to in this article is available as a Gerber file. Elektor Members can exclusively download these files for free as part of their Membership. Gerber files allow a PCB to be produced on an appropriate device available locally, or through an online PCB manufacturing service. Elektor recommends its business partner Eurocircuits as the company of choice for its own prototypes and volume production in selected cases.

Components
Download the BOM list
The BOM (Bill of Materials) is the technically exhaustive listing of parts and other hardware items used to produce the working and tested prototype of any Elektor Labs project. The BOM file contains deeper information than the Component List published for the same project in Elektor Magazine. If required the BOM gets updated directly by our lab engineers. As a reader, you can download the list here.
Want to learn more about our BOM list? Read the BOM list article for extra information.
COMPONENT LIST
Resistors
R1,R4 = 1kOhm
R2,R3,R5–R10 = 180Ohm
Capacitors
C1 = 10nF decoupling
Semiconductors
D1 = LED, 5mm, red, rectangular
D2,D3,D4 = LED 5mm, yellow, rectangular
D5–D8 = LED 5mm, green, rectangular
IC1 = MCP23S08
Miscellaneous
P1 = 2-pin pinheader, 0.1’’ pitch
K1 = 14-pin pinheader (2x7), 0.1’’ pitch
