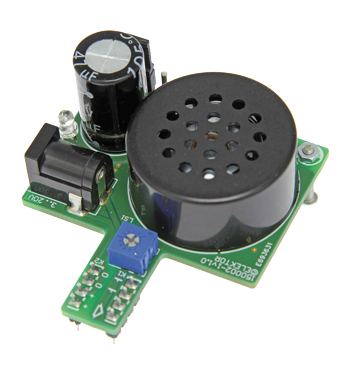

Audio T-Board
With integrated loudspeaker
Materials
Gerber file
CAM/CAD data for the PCB referred to in this article is available as a Gerber file. Elektor GREEN and GOLD members can exclusively download these files for free as part of their membership. Gerber files allow a PCB to be produced on an appropriate device available locally, or through an online PCB manufacturing service.
Elektor recommends the Elektor PCB Service service from its business partner Eurocircuits or AISLER as the best services for its own prototypes and volume production.
TIP: your first PCB at AISLER is free up to €30 with using the coupon code ELCCBB at checkout.
The use of our Gerber files is provided under a modified Creative Commons license. Creative Commons offers authors, scientists, educators and other creatives the freedom to handle their copyright in a more free way without losing their ownership.
Components
The BOM (Bill of Materials) is the technically exhaustive listing of parts and other hardware items used to produce the working and tested prototype of any Elektor Labs project. The BOM file contains deeper information than the Component List published for the same project in Elektor Magazine. If required the BOM gets updated directly by our lab engineers. As a reader, you can download the list here.
Want to learn more about our BOM list? Read the BOM list article for extra information.
Component list
Resistors
Default: 0.1 W, 1%, SMD0603
R1 = 1k?
R2–R6 = 100k?
R7 = 22k?
R8,R10 = 10k?
R9 = 20k?
R11 = 390?
P1 = 10k?, 0.5W, 10% preset, Vishay Sfernice T73YU103KT20
Capacitors
C1,C2 = 1µF 25V, 10%, X7R, SMD 0805
C3,C6,C11,C12,C14 = 100nF 16V, 10%, X7R, SMD 0603
C4,C5 = 220nF 10V, 10%, X7R, SMD 0603
C7 = 10µF 6.3V, 20%, X5R, SMD 0603
C8,C9 = 1nF 50V, 5%, C0G/NP0, SMD 0603
C10 = 47µF 100V, 20%, bipolar, 13mm diam., 5mm pitch, Ir 240mA
C13 = 22µF 6.3V, 10%, X5R, SMD 1206
C15 = 10µF 25V, 10%, X5R, SMD 1206
Inductors
L1,L2 = 1.3A 0.15?, 600? @ 100MHz, SMD 0603 (Murata BLM18KG601SN1D)
L3 = 3A 2x50 m?, 230? @ 100 MHz, SMD Common Mode Choke (ACM4520-231-2P-T)
L4 = 10µH 2.1A, screened, SMD (Laird TYS5040100M-10)
Semiconductors
D1 = PESD5Z2.5, SMD SOD-523
D2,D3 = PMEG6030EP, SMD SOD-128
D4 = LED, low-current, green, 3mm, wired
IC1 = TSV912AIYST, SMD MSOP-8
IC2 = SSM2305RMZ-REEL7, SMD RM-8
IC3 = ADP2300AUJZ-R7, SMD UJ-6
Miscellaneous
K1,K2 = 4-pin pinheader with thin pins, 0.1” pitch, Harwin D01-9923246 (Newark/Farnell # 1022218)
K3 = supply connector 12V 3A, 1.95mm center pin
PC1,PC2 = PCB pin, 1.3mm diam.
JP1 = 2-pin pinheader, 0.1” pitch, with jumper
LS1 = loudspeaker, PCB mount, 31.9mm diam., 17.53mm pitch (RS-online/Avnet 7243119)
Alternative for LS1: Multicomp MCABS-201-RC (Newark/Farnell 2361100)
Alternative for LS1: Visaton 2823, K 23 PC - 8 Ohm (Newark/Farnell 2357167)
PCB # 150002-1
Alternatively, ready assembled board # 150002-91
