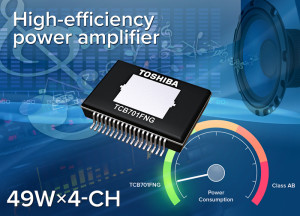

4-channel class AB amp from Toshiba
December 13, 2017
on
on
![4-channel class AB amp from Toshiba](https://cdn.xingosoftware.com/elektor/images/fetch/dpr_1,w_800,h_460,c_fit/https%3A%2F%2Fwww.elektormagazine.com%2Fassets%2Fupload%2Fimages%2F4%2F20171211114523_TCB701FNG.jpg)
In January, Toshiba will begin shipping samples of its new four-channel high-performance linear (class AB) power amplifier IC delivering high-quality playback providing up to 4 x 49W outputs. The chip is ideal for car audio applications and boasts high efficiency.
The TCB701FNG has efficiency comparable to class D digital amplifiers. The TCB701FNG's energy consumption is only 10% of comparable, conventional Class AB amplifier designs (under normal operating conditions with output in the range of 0.5 W to 4 W). The overall amplifier cost is lower than equivalent class D amps because no EMI or low pass filtering is necessary.
In addition to high-efficiency and low-noise operation, the IC offers an advanced set of self-diagnostic features that can monitor and report various fault conditions via its I²C bus. These features include sampling the output DC offset in real time to help prevent speaker damage and improve system reliability.
Additional features include high-frequency noise suppression, protection against output cross connection, over/under-voltage, three levels of over-temperature detection, standby/mute control and GSM phone RF noise suppression.
Toshiba's new IC comes in a 36-pin HSSOP package and can be used in power amplifier or line driver mode. The IC operates with a supply voltage of 6 to 18 V to provide four channels at up to 49 W per channel driving 2 Ω speakers. The effective noise voltage at the output is only 60 μVrms.
The TCB701FNG has efficiency comparable to class D digital amplifiers. The TCB701FNG's energy consumption is only 10% of comparable, conventional Class AB amplifier designs (under normal operating conditions with output in the range of 0.5 W to 4 W). The overall amplifier cost is lower than equivalent class D amps because no EMI or low pass filtering is necessary.
In addition to high-efficiency and low-noise operation, the IC offers an advanced set of self-diagnostic features that can monitor and report various fault conditions via its I²C bus. These features include sampling the output DC offset in real time to help prevent speaker damage and improve system reliability.
Additional features include high-frequency noise suppression, protection against output cross connection, over/under-voltage, three levels of over-temperature detection, standby/mute control and GSM phone RF noise suppression.
Toshiba's new IC comes in a 36-pin HSSOP package and can be used in power amplifier or line driver mode. The IC operates with a supply voltage of 6 to 18 V to provide four channels at up to 49 W per channel driving 2 Ω speakers. The effective noise voltage at the output is only 60 μVrms.
