New color sensor guarantees defined, consistent LED light

April 28, 2016 | 13:24
JENCOLOR® sensor specifically for lighting applications
JENCOLOR® sensor specifically for lighting applications

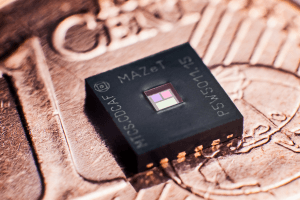

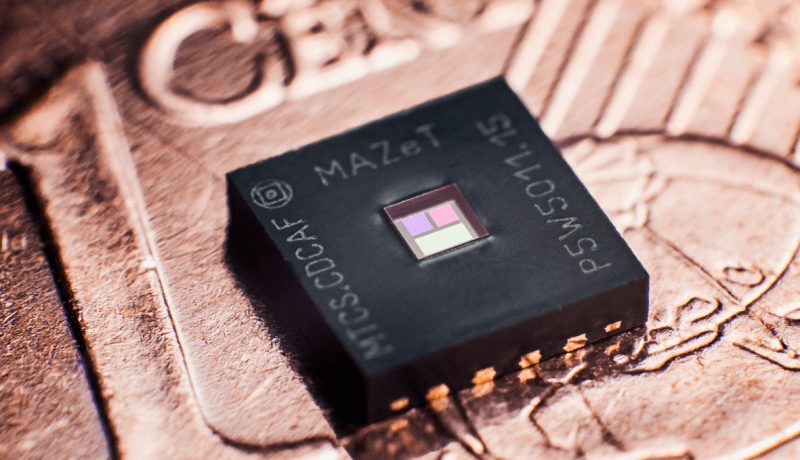

The newest and first fully integrated sensor MTCS-CDCAF (QFN16) from MAZeT includes a True Color interference filter, integrated signal amplification based on charge-to-digital conversion, and an on-chip temperature sensor. It combines the functions of the MTCSiCF & MCDC04. Possible areas include LED lights, LED backlight systems, displays, architectural lighting, in vehicles & aircraft, and in medical and technical lighting.

LED measurement and regulation should be direct, fast, precise & temperature-independent. The MTCS-MCDCAF utilizes JENCOLOR® interference filter technology. It therefore operates reliably at temperatures of over 100 degrees C and maintains its sensitivity through its entire lifecycle. In addition to color temperature and chromaticity, the sensor measures brightness and other light-related parameters such as color brightness, frequency and flicker.
