IO-Warrior Expansion Board

Measurement and control using your (old) PC

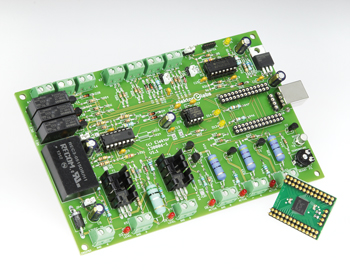

IO-Warrior Expansion Board
Don’t throw out your old PCs and notebooks or leave them gathering dust in the basement! They can be a useful resource: by adding this universal interface card an old PC can be pressed into service as a measurement and control hub. An IO-Warrior module on the I/F board takes care of USB communication, and source code is available that works with the free version of Visual Studio.
Downloading of this magazine article is reserved for Elektor Members only.
Already a member? click here to log in.
Products
Relevant websites
Gerber file

CAM/CAD data for the PCB referred to in this article is available as a Gerber file. Elektor Members can exclusively download these files for free as part of their Membership. Gerber files allow a PCB to be produced on an appropriate device available locally, or through an online PCB manufacturing service. Elektor recommends its business partner Eurocircuits as the company of choice for its own prototypes and volume production in selected cases.

Components
Download the BOM list
The BOM (Bill of Materials) is the technically exhaustive listing of parts and other hardware items used to produce the working and tested prototype of any Elektor Labs project. The BOM file contains deeper information than the Component List published for the same project in Elektor Magazine. If required the BOM gets updated directly by our lab engineers. As a reader, you can download the list here.
Want to learn more about our BOM list? Read the BOM list article for extra information.
Component List
Resistors
R1 = 47kOhm
R2 = 300Ohm 1%
R3,R10,R14,R38,R39,R40,R41,R42 = 560Ohm
R4,R46,R47 = 390Ohm
R5,R6,R9,R13,R18,R19,R31,R35,R37,R43,R45,R50,R51,R52,R54,R55,R56 = 10kOhm
R7,R15 = 680Ohm
R8,R12 = 20kOhm
R11 = 0.5Ohm 5W
R16 = 47Ohm
R17,R20,R22,R25 = 100kOhm
R21,R26 = 4.7kOhm
R23 = 10MOhm (not fitted)
R24 = 0Ohm (wire link)
R27,R32,R36,R44 = 1kOhm
R28 = 1.3kOhm 1%
R29 = 68Ohm
R30,R33,R34 = 47Ohm 3W
R48,R49,R53 = 100Ohm
P1 = 47kOhm trimpot
Capacitors
C1,C4,C5,C6,C12 = 100µF 25V
C2,C3,C9,C10,C11,C13,C14,C15 = 100nF
C7,C8 = 1µF ceramic
Semiconductors
D1,D13,D14 = LED, yellow, 3mm
D2,D4,D6,D10,D15,D18,D19,D20 = 1N4148
D3,D8,D9,D11,D12 = LED, red, 3mm
D5 = 3.6V zener diode
D7,D16 = 4.7V zener diode
D17 = 1N5821
T1,T6 = BDX53B
T2,T3,T4,T7,T9,T10,T11 = BC547C
T5 = BC557B
T8 = BC108
IC1 = IO-Warrior56-MOD (Version 1.1.0.1 or higher)
IC2 = LM1117T-ADJ
IC3 = MSP430F2013IN
IC4 = LM324N
IC5 = MCP4822-E/P
DCDC1 = AM3N-0515D or REC3-0515DR/H1
Miscellaneous
JP1,JP4,JP5 = 3-pin pinheader, 0.1” pitch
K1 = 3-pin pinheader, 0.05” pitch
K6 = USB B socket, right angled
JP2, JP3, JP6 = 2-pin pinheader, 0.1” pitch
K2,K3,K4,K5,K7,K8,K9,K10,K11,K12,K14,K15,K16 = 2-way PCB terminal block
DIP8 IC socket
DIP14 IC socklet
26-way DIL socket strip, 0.1” pitch, for IC1, premium quality
4-way SIL socket strip, 0.1” pitch, for IC1, premium quality
TO220 style heatsink, 21K/W
RE1,RE2,RE3 = 5V relay, SPST-NO
Jumper
PCB # 130006-1 v. 1.1
